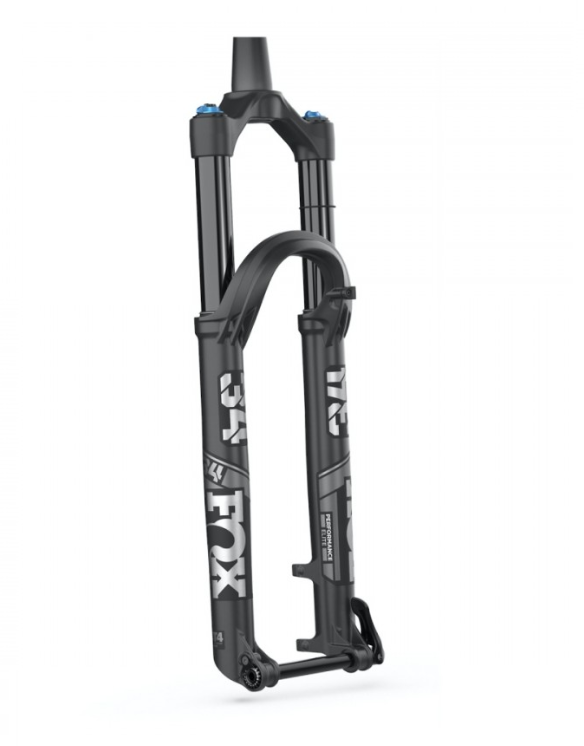

Fox 34 29 P-SE130 Fit4 3Pos-Adj 15X110 1.5T 44Mm Matte Black
R18 900.00
In stock
Fox 34 29 P-SE130 Fit4 3Pos-Adj 15X110 1.5T 44Mm Matte Black
Product Details
Brand: Fox
Category: Suspension
Description
34 A Float 29″ Performance Elite 130 FIT4 3Pos-Adj Tapered Boost
The Fox 34 A Float 29″ Performance Elite with 3Pos-Adjust (Open,Medium,Firm) FIT4-damper is a lightweight boost fork with 140 travel and quick release thru axle – designed for Trail und All-Mountain riders.
Lighter, more tunable and smoother than ever before: Fox Racing 34 K Float 29″ Performance Elite 130 FIT4 3Pos-Adj Tapered Boost
Designed for the aggressive trail rider, the Performance Elite Series 34 features a FIT4 damper, FLOAT air spring, and super lightweight chassis. The 34 provides proven trail performance that instills confidence and control. Performance Elite forks retain the same adjustments, features, dampers, weight, and 7000 series aluminum upper tubes as Factory Series, but have black anodized stanchions instead of Genuine Kashima Coat.
The all-new 34 pulls out all the stops, shaving every possible gram while making sure not to compromise the stiffness or strength requirements of modern trail riding. Modern frame designs and geometry trends require modern suspension design solutions. The arch design is designed to pair perfectly with modern trail bikes. Head tube profiles have grown larger and larger, and fork offsets shorter and shorter. The new arch shape takes this need into account by jutting forward to provide ample headtube clearance at full compression.
Returning with the same legendary suppleness and longevity, the EVOL air spring in 34’s now has an enlarged negative air spring to assist with mid-stroke support. New for 2022, the 34 comes with the option to tune the negative air spring with a volume spacer.
Features – Fox Racing 34 A Float 29″ Performance Elite 130 FIT4 3Pos-Adj Tapered Boost
- Model – 2022 Performance Elite Series 34 FLOAT FIT4 3POS
- FLOAT EVOL air spring adds plushness
- New air/oil channels
- New FIT4 three position damper for improved control
- New arch shape offers improved head tube clearance with shorter rakes
- New 58mm diameter crown
- Updated EVOL air spring
- Boost 110mm Thru Axle with quick release lever
Product features
- Use: All Mountain, Trail, Cross-Country
- Wheel size: 29″
- Travel: 130mm
- Offset: 44mm
- Spring: Air
- Damping: FIT4 3-Position with Adjust
- Adjustments: Rebound, spring hardness over air pressure, FIT4 3-position compression (Open/Medium/Firm) with Adjust
- Adjustments FIT4 Damping:
- Low-speed compression: 22 klicks (Open)
- Low-speed rebound: 10 klicks
- Steerer: Tapered 1.5″ to 1 1/8″
- Steerer length: 264mm
- Upper Tubes: 34mm
- Disc brake mount: Post Mount (PM6 – Direct Mount 160mm)
- Maximum Rotor Size: 230mm
- Drop out: 15x110mm Boost Thru Axle QR
- Max. tire dimension: 29 x 2.6″
- Axle to Crown: 554mm (140mm travel)
Material
- Steerer: Aluminum
- Crown: Aluminum
- Lowers: Magnesium
- Upper Tubes: Aluminum (Black Ano)
Color
- matte black
Weight
- up to 1738g (manufacturer information)
Scope of delivery
- 1 Fox Racing 34 A Float 29″ Performance Elite 130 FIT4 3Pos-Adj Tapered Boost
- 1 Fox Racing Thru Axle 15x110mm Boost with Lever
- 1 Star Nut
- 3 Volume Spacers
- Manual
Fork pump not included!
Technologies
FIT4
A reconfigured shim stack found in all 34 and 36 FIT4 forks provides more sensitivity while maintaining support during aggressive riding. In its fourth generation, our patented FIT4 closed cartridge system provides three on-the-fly compression damping positions—Open, Medium, and Firm—to adapt to varying trail conditions. Factory Series forks feature an additional 22 clicks of low-speed compression adjust in the Open mode, allowing riders to fine-tune their exact damping preferences.
FLOAT Airspring
The FLOAT air spring system developed for 32, 34 and 40 is lighter and reduces the force to initiate travel, providing excellent sensitivity and small bump compliance for all riders and pressure settings. Similar to our FLOAT rear shocks, the new FLOAT system features positive and negative air springs that automatically equalize during use to give each rider the right pressure balance. The progressiveness of the spring curve can be adjusted via air volume spacers, allowing riders to fine-tune the feel of the air spring.
EVOL
A more linear spring curve gives EVOL forks and shocks plushness off the top, extra mid-stroke support, and more tunable bottom-out progression, allowing riders to tap into the ideal pairing of front and rear-end feel. The EVOL technology from rear shocks is now integrated into all FOX forks. EVOL increases negative air spring volume, specifically positioned and sized for optimum small bump sensitivity.
Air Volume Spacers
The progressiveness of the FLOAT air spring curve can be adjusted via air volume spacers, allowing riders to fine-tune the feel of the air spring.
15QR (Boost)
Don’t sacrifice performance by going with a pinner skewer. We teamed up with Shimano to create an axle that is extremely light and stiff, in a tool-free design. You’ll gain a ton of confidence when you’re deep in the rocks, roots, and ruts.
15QR (Boost)
Don’t sacrifice performance by going with a pinner skewer. We teamed up with Shimano to create an axle that is extremely light and stiff, in a tool-free design. You’ll gain a ton of confidence when you’re deep in the rocks, roots, and ruts.
- The 15QR-Lever
- Cutout in lever reduces weight and improves functionality
- Lighter weight forged lever
- Lighter weight forged axle shaft
- Clockable Thread – You never have to adjust your QR skewer nut to find the perfect tension.
- 25% increase in transverse shear stiffness – A 25% increase in transverse shear stiffness means the fork legs function as a single unit, improving suspension performance and front end confidence when forces on the wheel are not even on each side.
- 15% increase in torsional stiffness – Our legendary torsional stiffness is further improved by 15% for increased rider confidence.
