HEAVYWEIGHT FEATURES IN A LIGHTWEIGHT PACKAGE

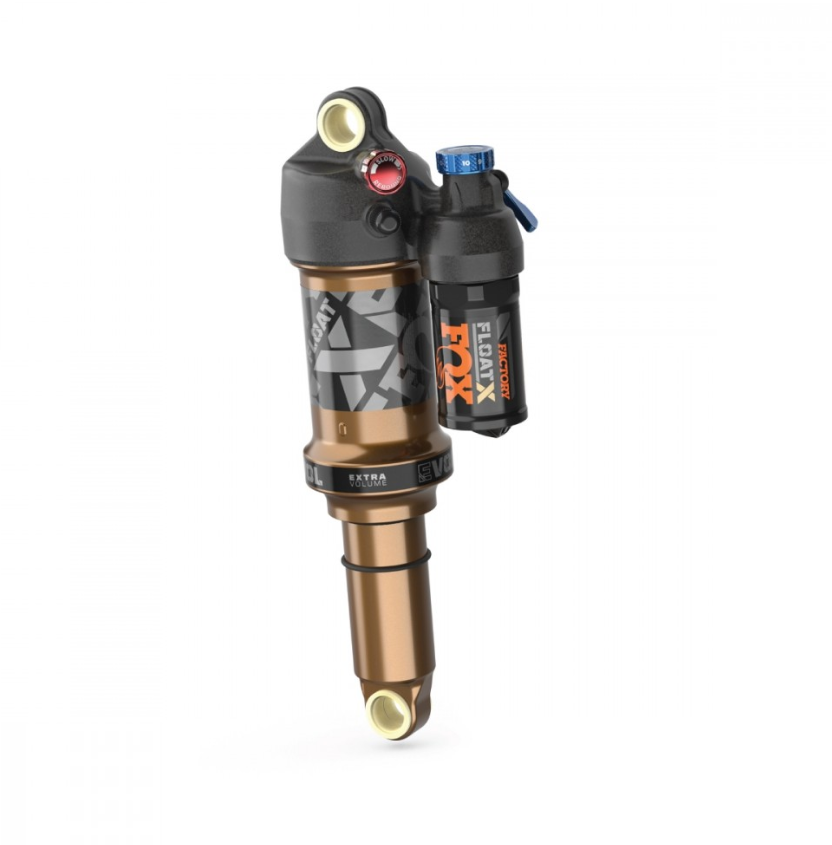

Designed specifically to meet the demands of aggressive trail riders, the new FLOAT X combines sophisticated damping and fade free performance with incredible light weight and outstanding structural integrity.

SIZES
Metric	190 x 45 / 210 x 50 / 210 x 52.5 / 210 x 55 / 230 x 57.5 / 230 x 60 / 230 x 65

ADJUSTMENTS
Independent 2 Position Open/Firm Lever
Low Speed Rebound – 16 Clicks
Low Speed Compression – 11 Clicks

ALL FACTORY FLOAT X SHOCKS
Body finish	Kashima Coat
Air sleeve finish	Kashima Coat

SPECS & FAMILY FEATURES
ALL-NEW chassis and damper
High-flow main piston
Air seal package
Volume spacers with smaller increments
MCU bottom out bumper
Numbered tool-free 12 position single-turn LSC (Low Speed Compression) adjuster
Independent firm mode circuit – Clockable 2 position adjuster
Increased rebound adjuster range (over DPX2)
Optimized reservoir lengths per shock size
Hydraulic top out feature
Reduced damper noise
Larger air sleeve bore reduces average rider pressure by 40 psi vs. DPX2
Bearing hardware compatible both sides
Air valve location offers improved frame fitment and pump access
