KEAN CX027-D Frame
R19 990.00
Size
In stock
KEAN CX027-D Frame
Product Details
Brand: KEAN
Category: Frameset
– Full internal cable routing
TECHNICAL SPECIFICATIONS

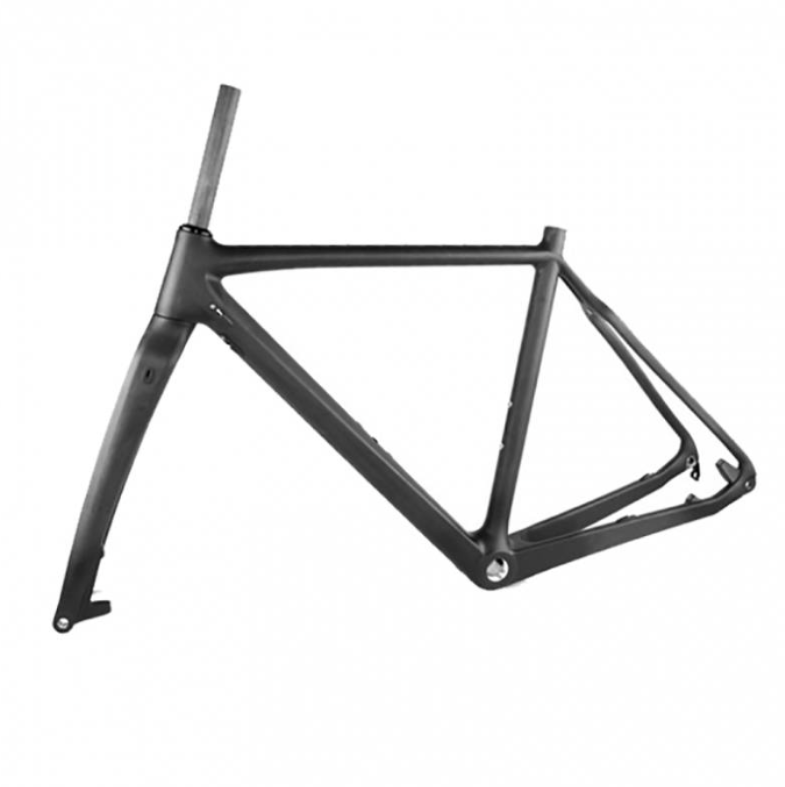

| Frame | 700C full carbon disc brake cyclocross bike frame |
| Material | High modulus Toray T700 carbon fiber |
| Size | 51, 53, 55, 57 |
| Fork | Specify carbon fork |
| Headtube | Tapered 1 1/8”- 1 1/2” head tube(upper 42mm lower 52mm) |
| Weight | 1100g/53cm |
| Seatpost | 31.6mm diameter round |
| Bottom bracket | BSA |
| Max tire clearance | 700*38C |
| Brake mount type | Disc brake |
| Dropout | Front 15*100mm TA Rear 12*142mm TA |
| Groupset | Mechanical and Di2 compatible |
| Test Standard | ISO4210 |
| Warranty | 2 years |
GEOMETRY
| SIZE | C-T | A | B | Offset | TT | HT | ST | BB | RC | WB | FC | STACK | REACH |
| 510 | 510 | 110 | 397.5 | 45 | 520 | 70° | 74° | 65 | 425 | 1004.9 | 588.5 | 526.5 | 369 |
| 530 | 530 | 120 | 397.5 | 45 | 540 | 70.5° | 73° | 65 | 425 | 1010.7 | 594.3 | 537.8 | 375.6 |
| 550 | 550 | 140 | 397.5 | 45 | 560 | 71° | 72.5° | 65 | 425 | 1021.4 | 604.9 | 558.6 | 383.9 |
| 570 | 570 | 160 | 397.5 | 45 | 580 | 71.5° | 72° | 65 | 425 | 1031.3 | 614.8 | 579.4 | 391.7 |
