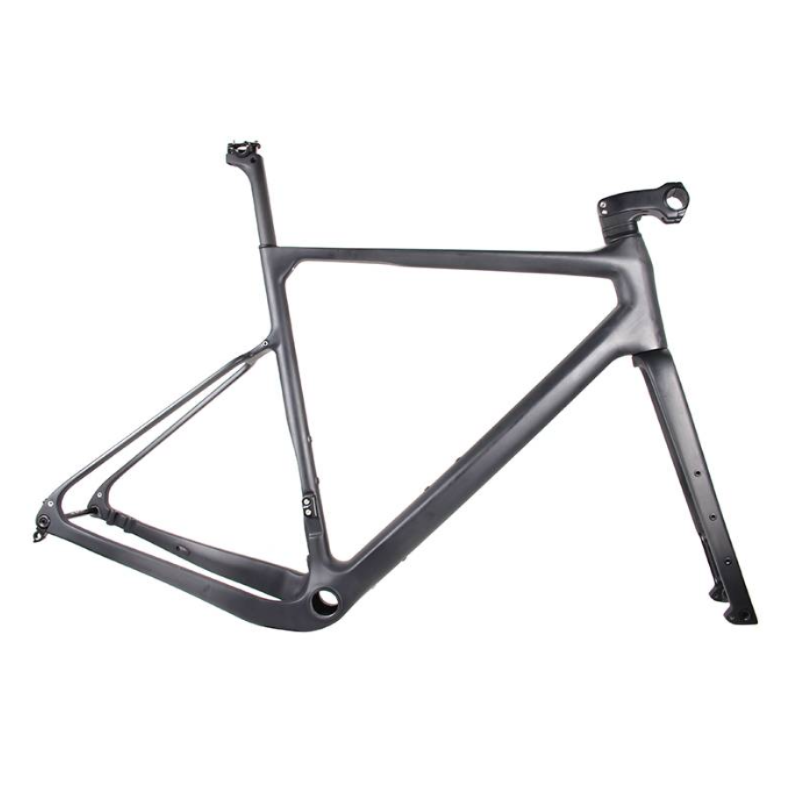

KEAN G071S-D Gravel Frameset
R20 990.00
Size
In stock
KEAN G071S-D Gravel Frameset
Product Details
Brand: KEAN
Category: Frameset
TECHNICAL SPECIFICATIONS
| Frame | 2021 New Carbon Gravel Frameset with Integrated Stem System |
| Material | High modulus Toray T700 carbon fiber |
| Size | 49, 52, 55, 58(cm) |
| Fork | Specify carbon fork |
| Stem size | 90/100/110/120mm |
| Headtube | Straight 1 1/2” head tube(upper 52mm lower 52mm) |
| Weight | Frame 980+/-40g/fork 430+/-15g/seat post 190+/-10g/stem (size 52) |
| Seatpost | 27.2mm*400mm (with 25mm offset) |
| Bottom bracket | Press-Fit BB86 |
| Max tire clearance | 700*53C or 650B*2.1” |
| Max Chainring | Max 53T- Small 39T |
| Brake mount type | Shimano flat mount disc brake (disc brake bolts length 38.2mm) |
| Dropout | Front 12*100mm TA Rear 12*142mm TA |
| Groupset | Mechanical and Di2 compatible |
| Test Standard | ISO4210 |
| Warranty | 2 years |
GEOMETRY
| SIZE | L | A | B | F | P | T | D | R | G | BBHeight | STACK | REACH | WB |
| 490 | 535 | 73.5° | 71° | 693.8 | 430 | 120 | 70 | 50 | 397 | 285 | 542.6 | 374.1 | 1008.9 |
| 520 | 550 | 73° | 71.5° | 599.4 | 431 | 140 | 70 | 50 | 397 | 285 | 563.4 | 377.5 | 1014.5 |
| 550 | 575 | 72.5° | 72° | 614.5 | 432 | 175 | 70 | 50 | 397 | 285 | 598.6 | 386 | 1029.6 |
| 580 | 595 | 72.5° | 72° | 634.5 | 433 | 205 | 70 | 50 | 397 | 285 | 627.1 | 397.1 | 1049.8 |
