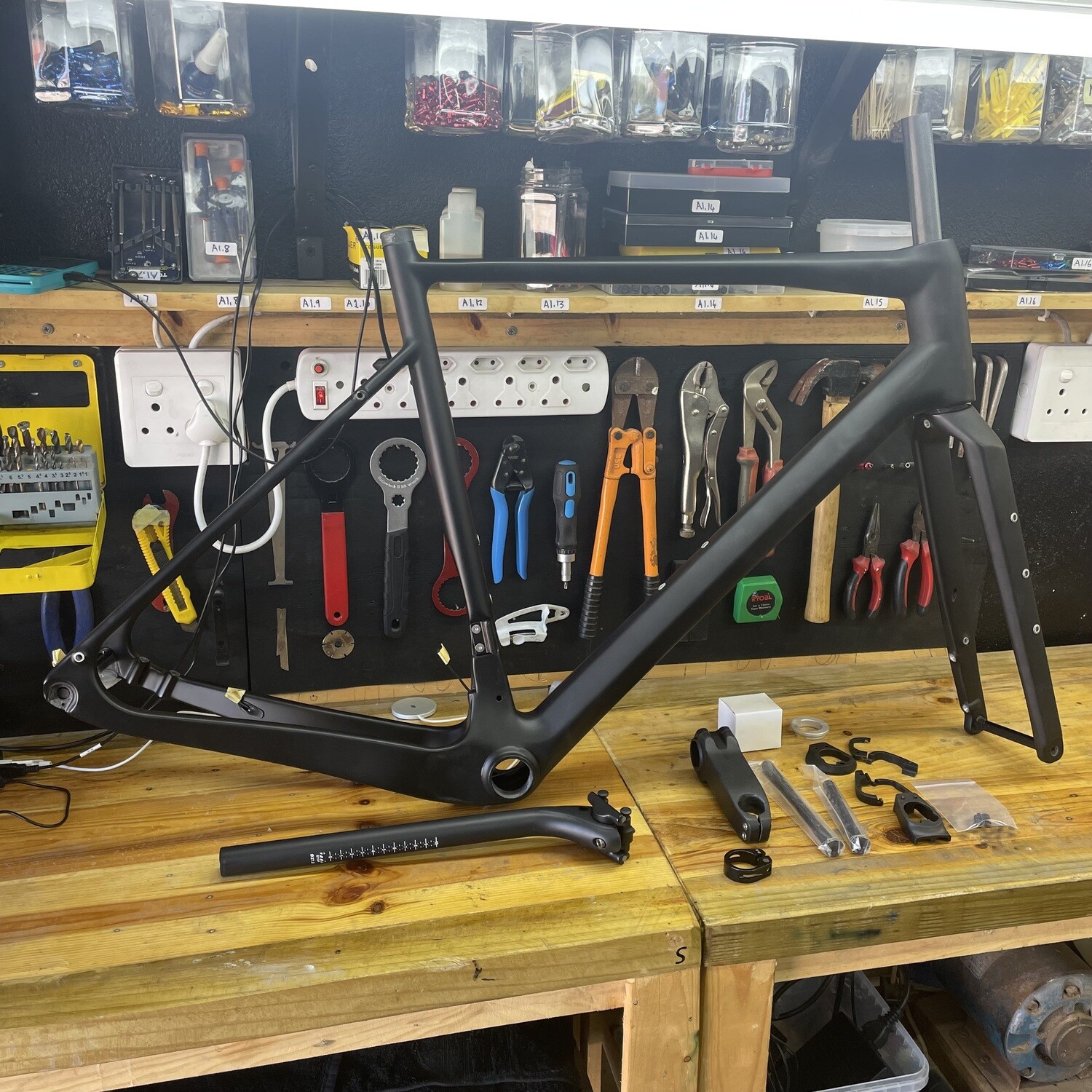

KEAN G075-D Gravel Frameset
R23 949.00
Size
In stock
KEAN G075-D Gravel Frameset
Product Details
Brand: KEAN
Category: Frameset
TECHNICAL SPECIFICATIONS
| Model | G075-D |
| Frame | 700C Full Carbon Racing Road Frameset |
| Including | Frame + Fork + Seatclamp + Spacers + Headset + Stem |
| Sizes Available | 49/52/54/56/59cm |
| Stem Size | 90/100/110/120mm |
| Compatible Handlebar | HB058 400/420/440mm |
| Cable Routing | Full Internal Cable Routing(For RB/FD/RD) |
| Cable plug | Mechanical and DI2(2 in 1) |
| Grade | 1050g/Size 54cm (frame) |
| Head Tube | Straight 1 1/2” – 1 1/2” head tube |
| Seat Post | Φ27.2 |
| Bottom Bracket | BB86/BSA |
| Tire Max | 700*50C |
| O.L.D | Rear TA Φ12*142mm, Fork TA Φ12*100mm |
| Disc Brake | Shimano Flat Mount 140mm or 160mm |
| Fork Length | 300mm |
| Fork offset | 50mm |
| Testing standard | ISO4210 |
| Warranty | 2 years |
GEOMETRY
| SIZE | CF | L | I | A | B | F | P | T | D | R | G | STACK | REACH | WB |
| 490 | 450 | 525 | 162 | 74° | 70.5° | 592 | 435 | 125 | 67 | 50 | 395 | 538 | 369 | 1018 |
| 520 | 520 | 535 | 167.11 | 73.5° | 71° | 593 | 435 | 140 | 67 | 50 | 395 | 556 | 370 | 1020 |
| 540 | 540 | 545 | 173.6 | 73° | 71.5° | 595.5 | 435 | 150 | 67 | 50 | 395 | 568 | 371.4 | 1021.7 |
| 560 | 560 | 560 | 177.49 | 72.5° | 72° | 601 | 435 | 170 | 67 | 50 | 395 | 589 | 374 | 1026 |
| 590 | 590 | 585 | 181.07 | 72.5° | 72.5° | 612 | 435 | 190 | 67 | 50 | 395 | 606 | 379 | 1034 |
