KEAN G085-D Gravel Frameset
R20 990.00
Size
In stock

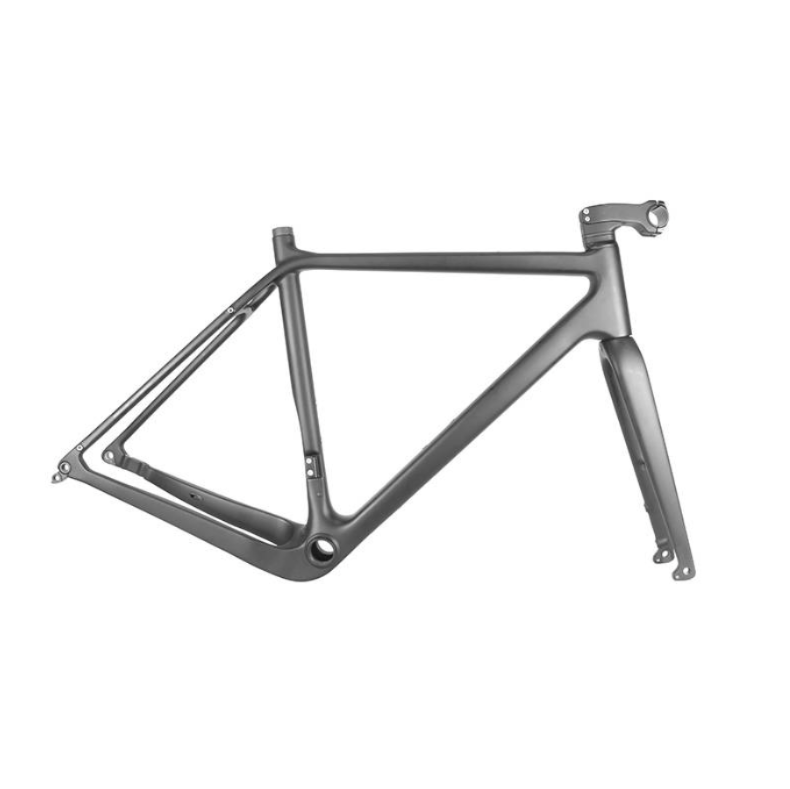

KEAN G085-D Gravel Frameset
Product Details
Brand: KEAN
Category: Frameset
TECHNICAL SPECIFICATIONS
| Model | G085-D |
| Type | 700C Full Carbon Racing GRAVEL Frameset |
| Including | Frame/Fork/Seatclamp/Headset/Spacers/stem |
| Frame sizes | 49/52/54/56/59cm |
| Stem Sizes | 90/100/110/120mm |
| Compatible handlebar | HB058 400/420/440mm |
| Cable Routing | Internal Cable Routing(HT/RB/FD/RD) |
| Cable Plug | Mechanical and DI2(2 in 1) |
| Grade Available | 1050g（54cm / BB86); Fork 450g |
| Head Tube | 1 1/2” – 1 1/2” (Upper 52mm, down 52mm) |
| Seat Post | Φ31.6mm |
| Bottom Bracket | BB86/BSA |
| Max Tire | 700C*50C |
| O.L.D | Rear TA Φ12*142mm, Fork TA Φ12*100mm |
| Disc Brake | Shimano Flat Mount 140mm or 160mm |
| Max Chainring | 53-39T / 50-34T |
| Fork Offset | 50mm |
| Fender&rack mount | Yes |
| Test Standard | ISO4210 |
| Warranty | 2 years |
GEOMETRY
| SIZE | CF | L | I | A | B | F | P | T | D | R | G | STACK | REACH | WB |
| 490 | 490 | 520 | 149 | 74.5° | 70.5° | 594 | 435 | 120 | 67 | 50 | 395 | 537 | 371 | 1020 |
| 520 | 520 | 535 | 160 | 74° | 71° | 601 | 435 | 140 | 67 | 50 | 395 | 557 | 375 | 1027 |
| 540 | 540 | 550 | 175 | 73° | 71.5° | 601 | 435 | 150 | 67 | 50 | 395 | 568 | 376 | 1027 |
| 560 | 560 | 565 | 180 | 73° | 72° | 611 | 435 | 170 | 67 | 50 | 395 | 590 | 385 | 1037 |
| 590 | 590 | 585 | 206 | 73° | 72° | 612 | 435 | 190 | 67 | 50 | 395 | 606 | 379 | 1045 |
