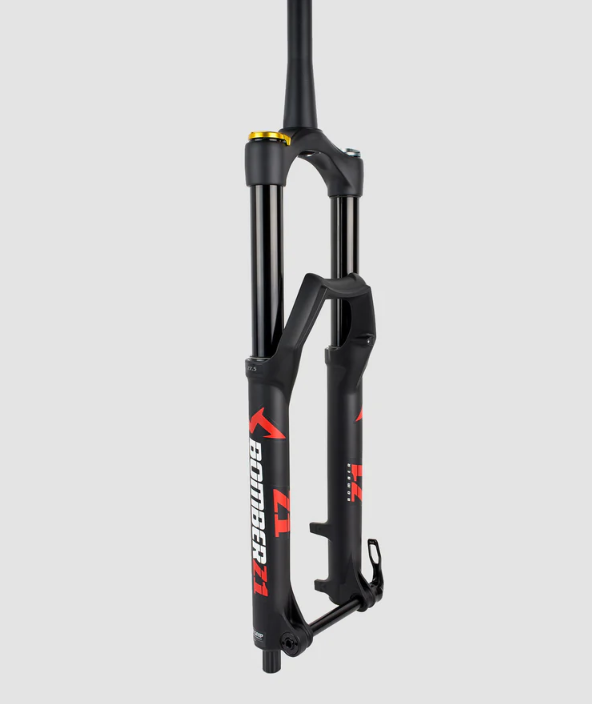

Marzocchi Z1 29 15X110

The Marzocchi Bomber Z1 Tapered Boost with GRIP Sweep Damper is a lightweight 29″ suspension fork with 170mm travel, 36mm stanchions and EVOL air spring for smooth response – developed for all mountain and enduro riders.

Simple adjustments with high stiffness and durability: The Marzocchi Bomber Z1 29″ 170 Grip Sweep-Adj Tapered Boost

The Z1 is freedom from the status quo. Step outside enduro’s obsession with counting seconds and go have some fun in the woods. The Z1 is an aggressive all-mountain and enduro fork with a different viewpoint for riders’ priorities. Everyone wants suspension performance that’s smooth as butter with great traction and control, and that’s where the Z1 shines. After that, the Z1 departs from industry norms. More time fiddling with adjustments means less time shredding the trails. The Z1 keeps it simple with intuitive compression sweep adjustment, from locked out to full open. Simple rebound adjustment covers the range from fast to slow rebound for a full range of rider weights and preferences without overcomplicating things. Plus, it’s biased towards stiffness, ride performance and durability, so while it’s carrying a few extra grams, you probably won’t notice because you’re having too much fun.

Features – Marzocchi Bomber Z1 29″ 170 Grip Sweep-Adj Tapered Boost

• Model – 2022 Bomber Z1 29″ Grip Sweep-Adj Tapered Boost
• 36mm upper tubes with the Marzocchi Bomber Z1 Casting
• 15QR x 110mm Boost with quick release and the option to convert to bolt-on axle
• FLOAT EVOL air spring adds plushness
• FLOAT EVOL air spring with individually adjustable volume
• Grip damper for improved control and with adjustable compression and rebound

Product features

• Use: All Mountain, Enduro
• Category: Performance
• Wheel size: 29″
• Spring: Air
• Damping: Grip Fit Adjust
• Adjustments: Rebound, spring hardness over air pressure, Grip Fit with Adjust
• Steerer: Tapered 1.5″ to 1 1/8″
• Steerer length: 264mm
• Upper Tubes: 36mm
• Disc brake mount: Post Mount (PM7 – Direct Mount 180mm)
• Maximum Rotor Size: 203mm
• Drop out: 15x110mm Boost Thru Axle with QR (quick-release lever)
• Max. tire dimension: 29 x 2.6″
• Axle to Crown: 569,1mm
• Travel: 170mm
• Offset: 44mm

Material

• Steerer: Aluminum
• Crown: Aluminum
• Lowers: Magnesium
• Upper Tubes: Aluminum

Scope of delivery

• 1 Marzocchi Bomber Z1 29″ 170 Grip Sweep-Adj Tapered Boost
• 1 Boost Thru Axle 15x110mm with Quick Releas Lever
• 1 Star Nut

Fork pump not included!

Technologies

GRIP
FIT GRIP Sweep is a robust closed cartridge style damper with the ability to recirculate and purge a proprietary bath fluid to maintain consistent cartridge fill and damping performance over time. The Sweep lever adjustment is a combined LSC/HSC compression adjustment that ranges from open to lockout

EVOL
EVOL increases negative air spring volume, specifically to provide optimum small bump sensitivity.
