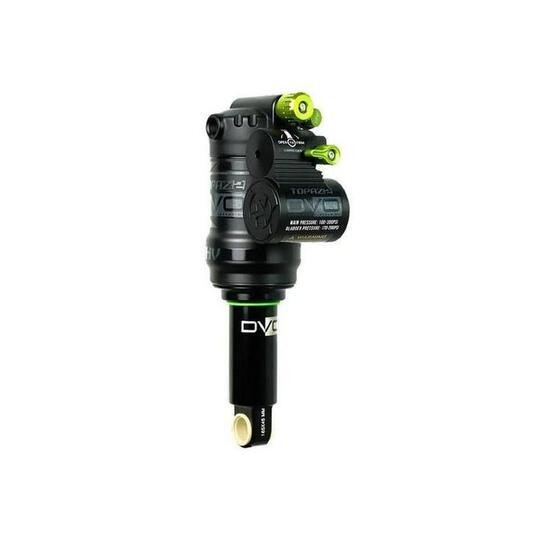

DVO-SHOCKS - TOPAZ 2

WHY TOPAZ 2?

The Topaz 2 is the latest iteration of the Topaz Air series. This shock has been optimized to suite the needs of modern suspension kinematics working off a lower leverage ratio. The HV (high volume) negative reduces the breakaway force to counteract the a lower starting leverage force from the linkage design. The housing is designed around a transverse reservoir layout to aid in oil flow and achieve more frame clearance.

The Topaz 2 is available in metric trunnion sizes with T3 compression, dynamic rebound, positive/negative volume adjust, and adjustable bladder pressure.

SPEC

• Damper
  3 Position Compression Switch
  Dynamic Rebound
  Bladder Pressure Adjust
• Spring Features
  Volume Band Tuning for Positive and Negative spring
• Trunnion Sizes
  205x65
  205x62.5
  205x60
  185x55
  185x52.5
  185x51
