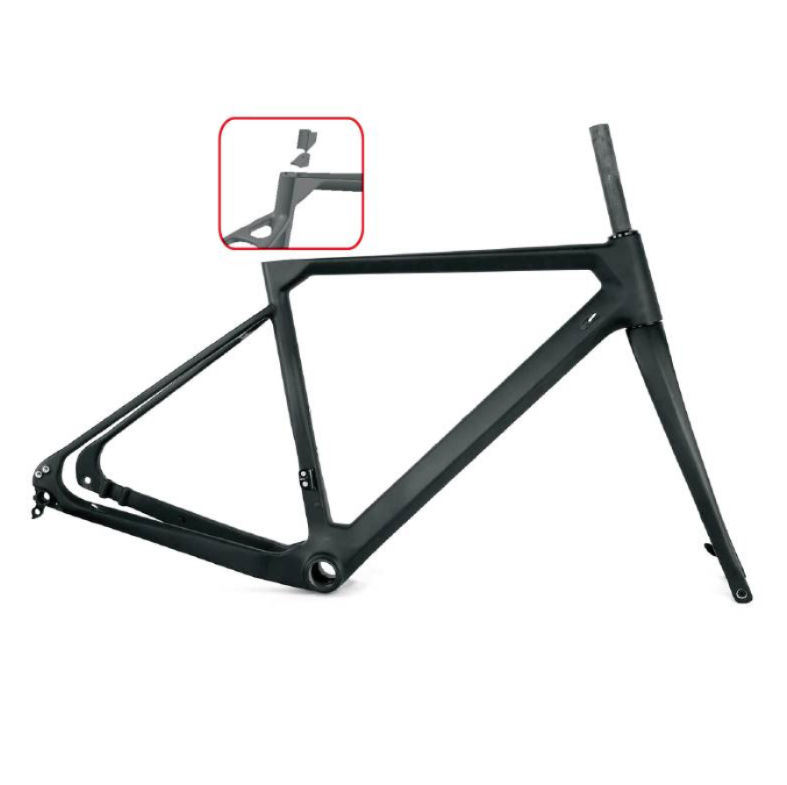

KEAN G065-D Gravel Frame
R20 990.00
Size
In stock
KEAN G065-D Gravel Frame
Product Details
Brand: KEAN
Category: Frameset
TECHNICAL SPECIFICATIONS
| Frame | 700C Full Carbon Racing Gravel Frameset |
| Inlcuding | Frame + Fork + Seatclamp |
| Sizes Available | 49/52/54/56/58cm |
| Cable Routing | Full Internal Cable Routing(For RB/FD/RD) |
| Cable plug | Mechanical and DI2(2 in 1) |
| Weight | 1080g/54cm; 450g/fork |
| Head Tube | 1 1/8” – 1 1/2” head tube |
| Seat Post | Φ27.2 |
| Bottom Bracket | Pressfit BB86 |
| Tire Max | 700*41C or 650B*1.9 |
| O.L.D | Rear TA Φ12*142mm, Fork TA Φ12*100mm |
| Disc Brake | Shimano Flat Mount 140mm or 160mm |
| Steerer Length | 300mm |
| Fork offset | 50mm |
| Testing standard | ISO4210 |
| Warranty | 2 years |
GEOMETRY
| SIZE | CF | L | I | A | B | F | P | T | D | R | G | STACK | REACH | WB |
| 490 | 440 | 510 | 140.3 | 75° | 70° | 592.2 | 430 | 105 | 70 | 50 | 395 | 523.7 | 369.7 | 1012.3 |
| 520 | 460 | 525 | 147.1 | 74.5° | 70.5° | 598.1 | 430 | 110 | 70 | 50 | 395 | 530.3 | 377.9 | 1018.2 |
| 540 | 480 | 545 | 162.6 | 73.5° | 71° | 604.7 | 430 | 130 | 68 | 50 | 395 | 549.1 | 382.4 | 1025.5 |
| 560 | 500 | 565 | 174.8 | 73° | 72° | 610.3 | 430 | 150 | 68 | 50 | 395 | 571.8 | 390.2 | 1031 |
| 580 | 520 | 575 | 189.9 | 72.5° | 72.5° | 609.8 | 430 | 180 | 68 | 50 | 395 | 602.3 | 385.1 | 1030.6 |
